Tree Grille Frame Type 1
Tree Grille Frame Type 2
Tree Grill Frames
Customised Support Frames
If the ground is on a gradient, we can manufacture a special frame that allows the tree grill to be sloping up to a maximum of 1:12, and the tree guard to remain vertical.
Read more...Product Options
| HSF910110 | Type 1 Square - Outside Dimensions: 900mm x 900mm |
| HSF910120 | Type 1 Square - Outside Dimensions: 1000mm x 1000mm |
| HSF910130 | Type 1 Square - Outside Dimensions: 1200mm x 1200mm |
| HSF910160 | Type 1 Round - Outside Dimensions: 890mm diameter |
| HSF910170 | Type 1 Round - Outside Dimensions: 1185mm diameter |
| HSF910210 | Type 2 Square - Outside Dimensions: 900mm x 900mm |
| HSF910220 | Type 2 Square - Outside Dimensions: 1000mm x 1000mm |
| HSF910230 | Type 2 Square - Outside Dimensions: 1200mm x 1200mm |
| HSF910260 | Type 2 Round - Outside Dimensions: 890mm diameter |
| HSF910270 | Type 2 Round - Outside Dimensions: 1185mm diameter |
Product info
Tree Grill Frames
- Finish
- Primer finish or black rust resistant gloss are standard.
- RAL or BS colours available on request.

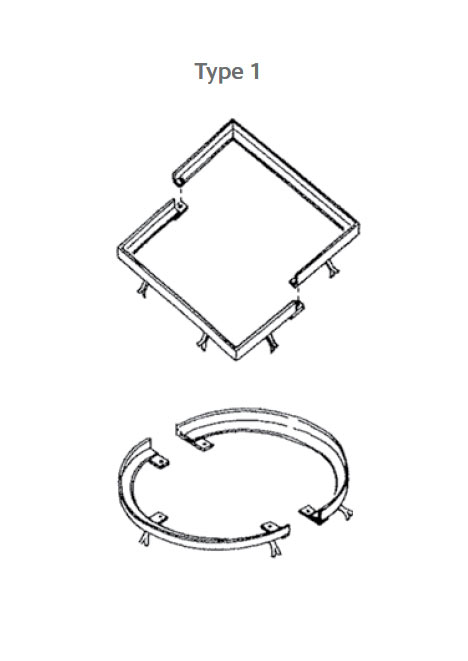

- Type 1
- Only supports outside of tree grille.
- If tree exists it can be supplied in 2 halves bolted together.
- Not suitable for grilles that are more than 2 segments.
- Only ground anchored guards can be used.

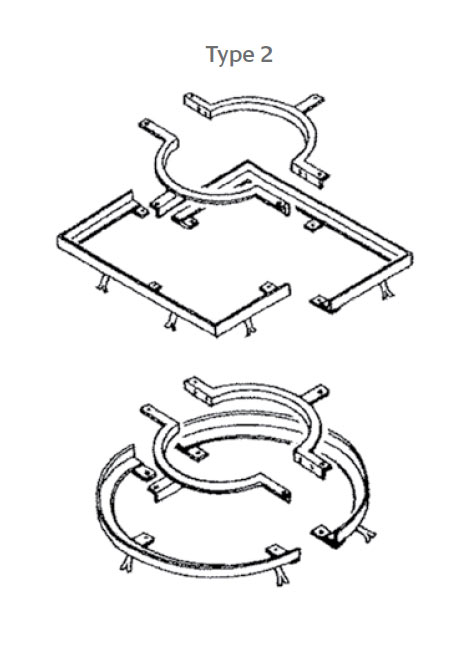

- Type 2
- Supports inner and outer edges of grille segments.
- Suitable for all designs of tree grille.
- Inner section removable to allow uplift and replanting of tree.
- Bolt fix tree guards can be used, attached to the centre ring.
- Security Clamps
- Unique clamps secure the individual segments of the tree grille to each other and to the support frame.
- Increase rigidity of the whole unit and prevent removal of the grille casting segments.
- Unobtrusive and do not project above the tree grille surface.
